Description
All PlayStar playground equipment is designed to enhance your child's physical development and social skills. It is thoroughly tested in technical and real world situations to assure your family many years of enjoyment and satisfaction.

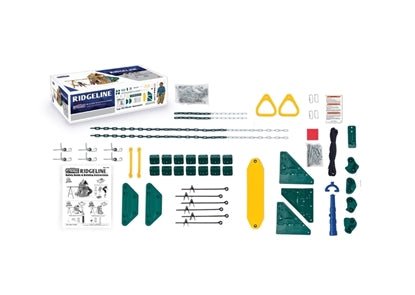

| Build it Yourself Kit (Hardware only) LUMBER NOT INCLUDED | Factory-Built Kit (partially pre-assembled) |
|
PART#: KT 77211 |
PART#: PS 73211 |
|
Lumber and Screws Approved for Outdoor Use are Purchased Separately. Additional cost from your local lumber yard is approximately $700. The estimated Building Time for 2 people is 10 to 12 hours. PlayStar Retailers will have a complete Price for this project and may vary from what is listed below. |
The estimated Set-Up time for 2 people is 3 to 5 hours. The factory-built wooden sets are custom built and available in approximately two weeks. |
A Leader in Playset Safety:
- No protrusions or entrapments
- Guardrails on all slide and climber openings to protect children from potential falls
- Wider swing spacing to avoid accidental body contact
- Safe, Spacious non-conflicting play zones
- Patented Third Leg on all Swing Beams at Tower to Add Stability.
- Swing areas are limited to two activities between posts for safe exit and entry
Wooden Swing Sets are Built to Last:
- PlayStar DIY playground equipment includes exclusive, patented products, heavy-duty hardware and high-density polyethylene playset accessories. Your backyard play equipment will stand the test of time because:
- Seats are manufactured for superior strength, flexibility and comfort without sharp chains underneath needed for support
- Chains are made from welded links for maximum strength and rubber-coated for a no-pinch grip. Will not peel or allow water to penetrate like chains with a sleeve
- Swing hangers are dual fastening and fasten through two separate boards in swing beam for added security
- Hardware that is demonstrably thicker, 42% stronger and hot-dipped galvanized to prevent corrosion or failure
- Swing set Accessories are larger, more durable and designed specifically to fit children ages 2 to 10 and to withstand the rigors of outdoor backyard play.
Inclusions:
- 37 SQ. FT. PLAY DECK WITH 18 ACTIVITIES

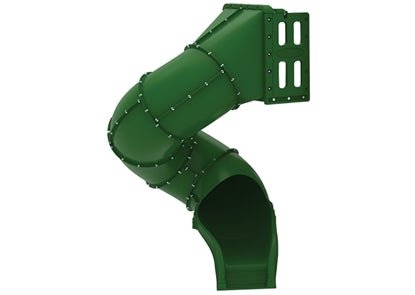

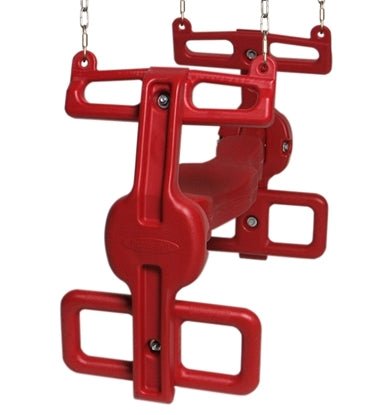

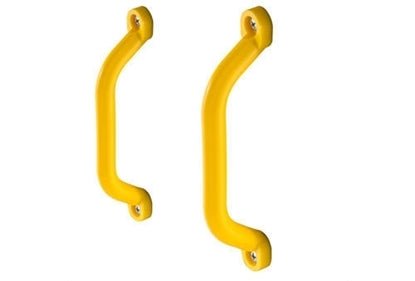

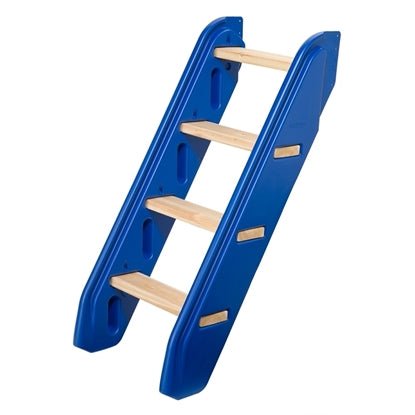

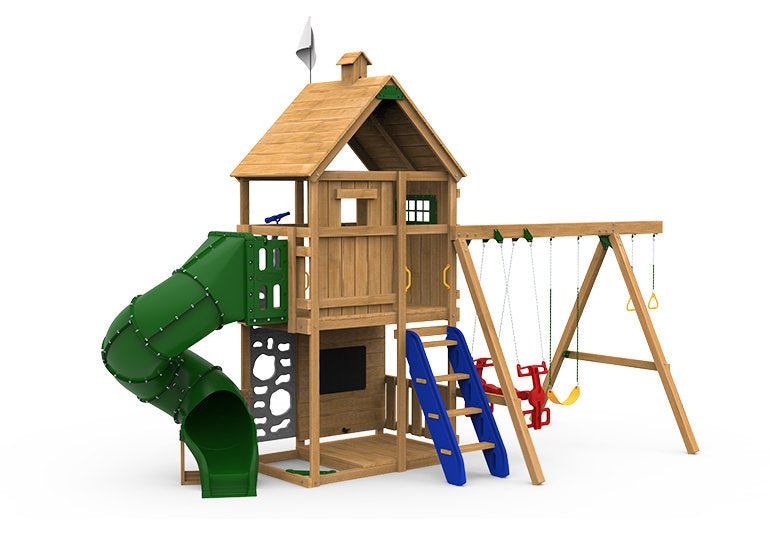

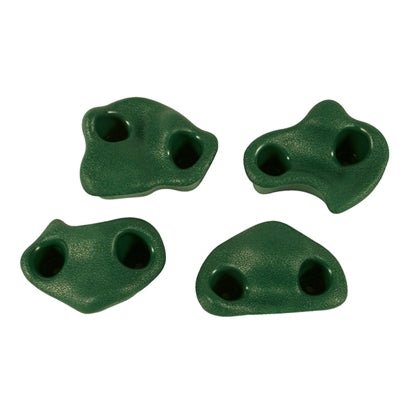

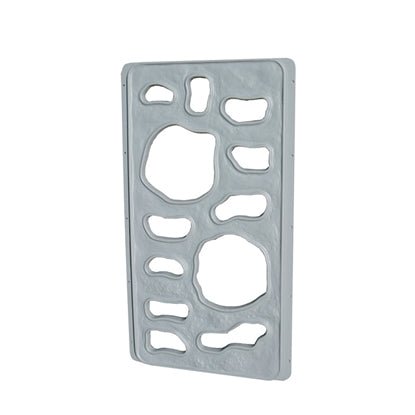

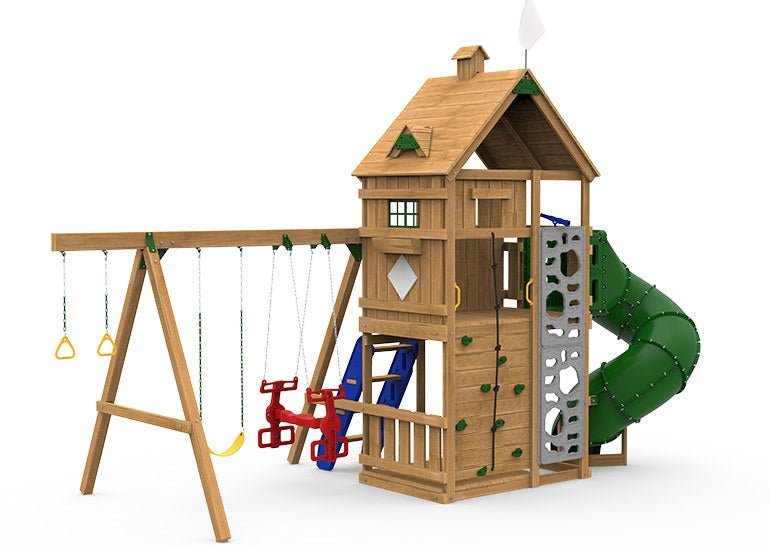

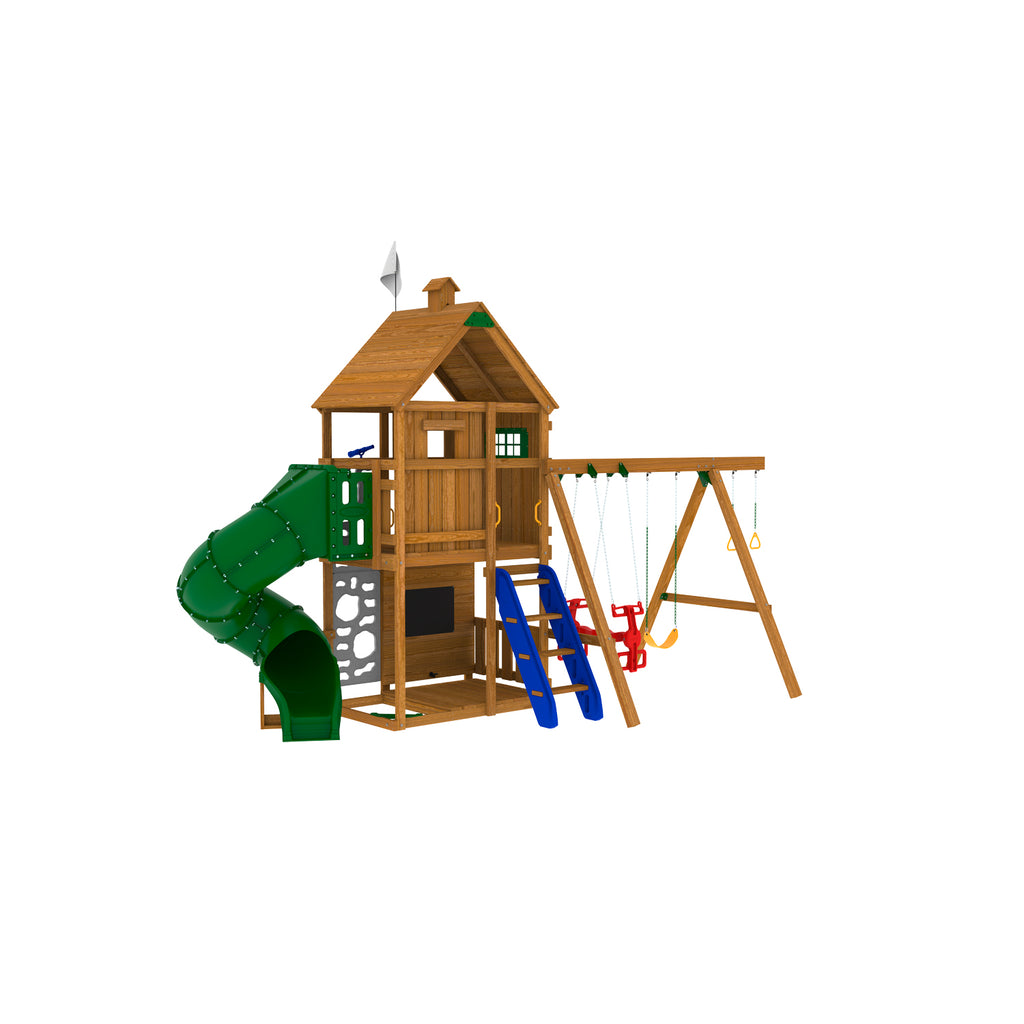

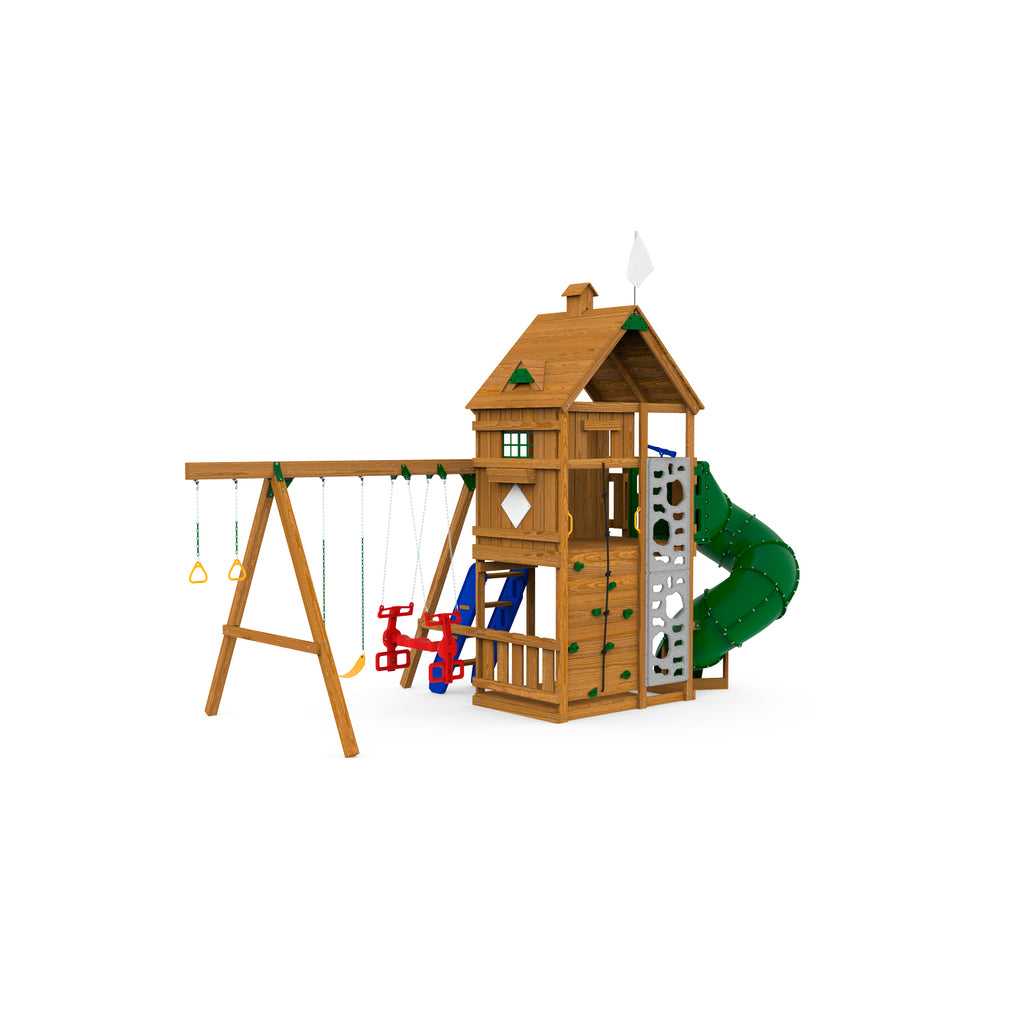

- The Ridgeline Gold Play Set includes the Ridgeline kit, Spiral Tube Slide, Telescope, Chalkboard, SandBox Seat, 2 sets Climbing Rocks, Climbing Rope, 2 Sets Play Handles, 2 Vertical Climbers, Climbing Steps, Air Rider, Swing and Gym Rings.
Dimensions:
- Ground to Peak Dimensions: 148"
- Ground to Top of Deck Dimensions: 5 ft
- Play Deck (sq ft): 37
- Approx Play Deck Dimensions (ft): Tower - 6 x 3.67
- Lower deck - 3.67 x 3.67
- Tube slide - 2 x 1
- Swing Beam Length/Height: 10'/86.25"

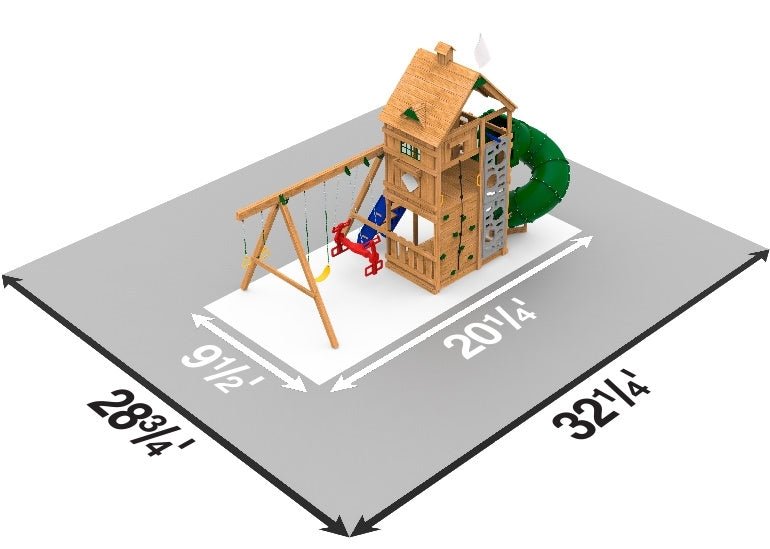

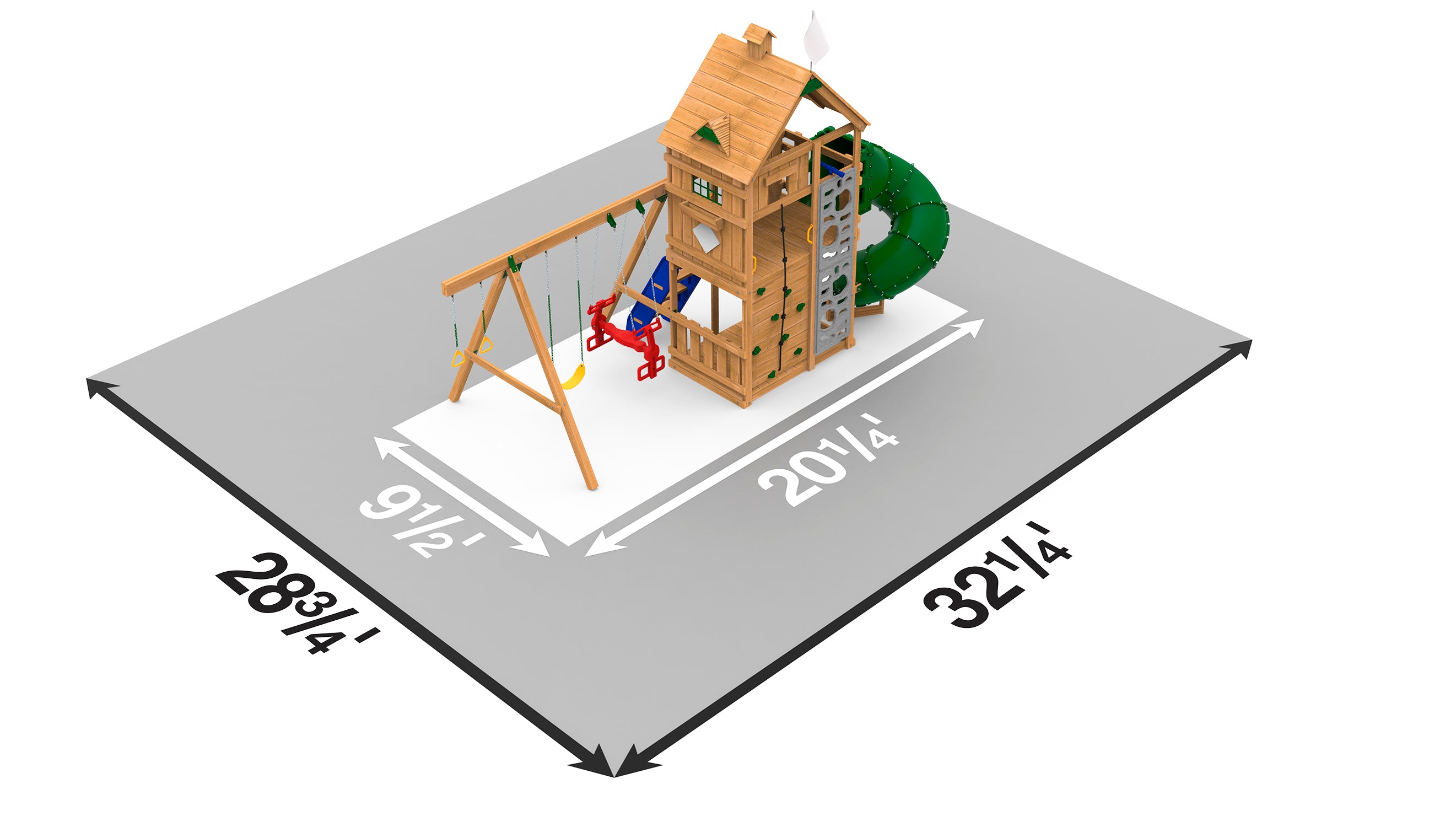

- Playset Size (w x d) Ft: 9.5' x 20.25'
- Approx Safety Zone Dimensions (w x d): 28.75' x 32.25'
- Cubic Yards of Shock Material: 35
- Shock Material Depth (in): 12
Lumber To Purchase:
The following lumber and screws are included in the factory-built set but are not included in the build-it-yourself set. For the BIY set, you will need to purchase these at your local lumber yard:
| 4" x 4" x 8' | 3 |
| 2" x 6" x 10' | 2 |
| 2" x 6" x 8' | 2 |
| 2" x 4" x 10' | 6 |
| 2" x 4" x 8' | 22 |
| 5/4" x 6" x 8' | 32 |
| Deck Screws #8 x 1 1/4" | 58 |
| Deck Screws #8 x 2 1/2" | 648 |
Tools and Assembly:
Tools for Assembly
- Socket Wrench
- 7/16”,1/2” & 9/16” Sockets
- 9/16” or Adjustable Wrench
- Ladder
- Measuring Tape
- Drill/Driver
- Phillips Head Screwdriver
- 1/8”, 1/4” & 3/8” Drill Bit (Included in Factory Built Play Sets)
- 3/4” & 1 1/8” Spade Bit (Not needed in Factory Built Play Sets)
- Level
- Hack Saw
- Saw (Not needed in Factory Built Play Sets)
- Saw Horses (Optional)
- Hammer
- Pencil
- Tape (Not needed in Factory Built Play Sets)
- Chalk (Not needed in Factory Built Play Sets)
- Safety Glasses
- Square
- Punch (Not needed in Factory Built Play Sets)
- Metal File
- Shovel
